Launching Our NEW

Micro Pick and Place (MPP) System

Request a demonstration

Micro Pick and Place (MPP) System
Easy Control of ultra-small volumes (in the picoliter range)

MPP_System

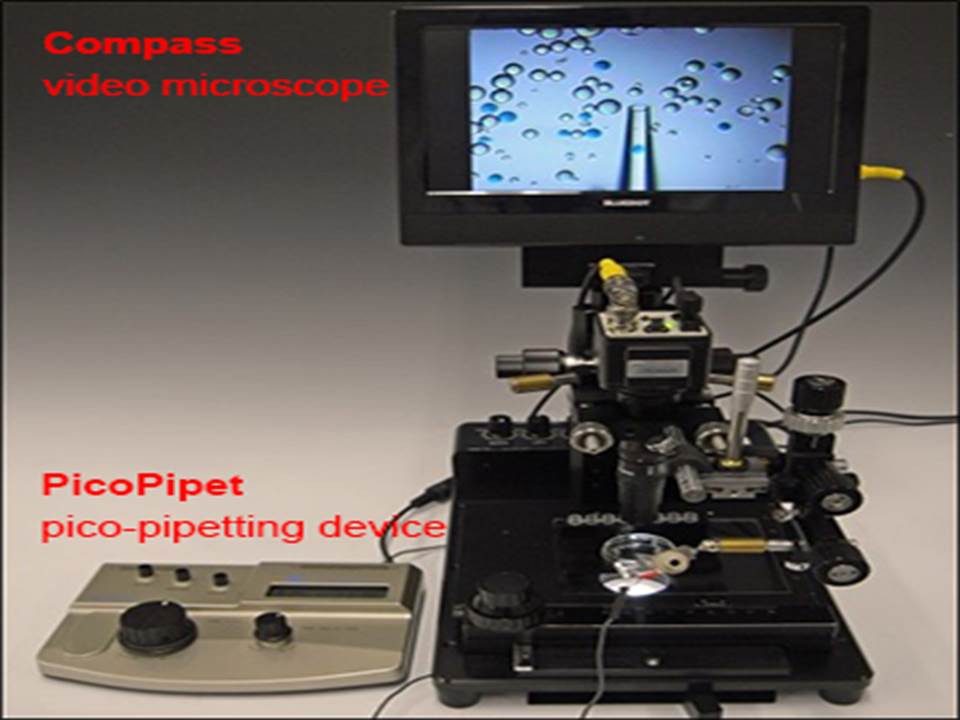

Photo: MPP-300 Micro Pick and Place Standard System
– PicoPipet, pico-pipetting device
– PicoPipet holder 40 mm
– Compass, video microscope
– Joystick manipulator

APPLICATIONS

  • Picking and placing micro targets (> 5 um) for transferring them.

Single cells/cell colonies
– single cells into PCR tubes
– circulating tumor cells (CTCs) on micro-devices
– and other cells/colonies

Microorganisms
– Algae
– Fungi
– Yeasts
– Parasites
– And other micro-organisms

Microdrops
Protein crystals
Metal particles
And MORE
……………….*The targets must be in non-adherent status.

  • Micro liquid application/spotting at the picoliter level



FEATURES
The Micro Pick and Place System makes it possible to transfer micro targets such as single cells one by one from one place to another while observing the targets with a microscope. The system is based on the PicoPipet that includes a small electro-osmotic pump. The system can be operated intuitively and does not require speciality knowledge nor training.  All team members can now easily control suction/hold/discharge of ultra-small volumes (in picoliter range).

How to pick up a Single Cell

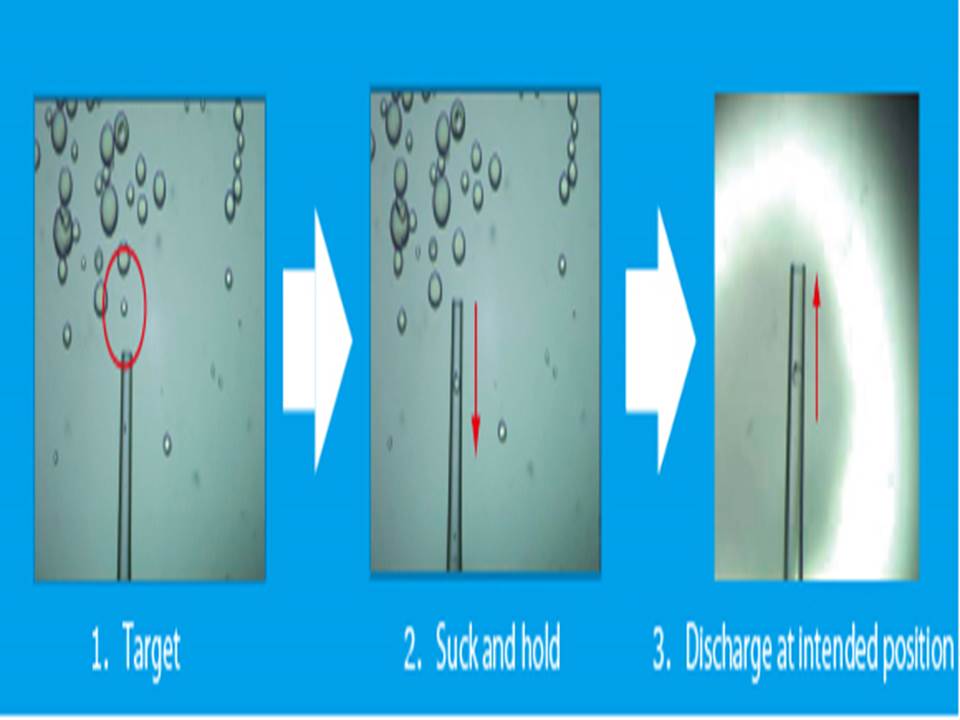

 Illustration: How to pick up a single cell from a disk and discharge it into a PCR Tube using the MPP System

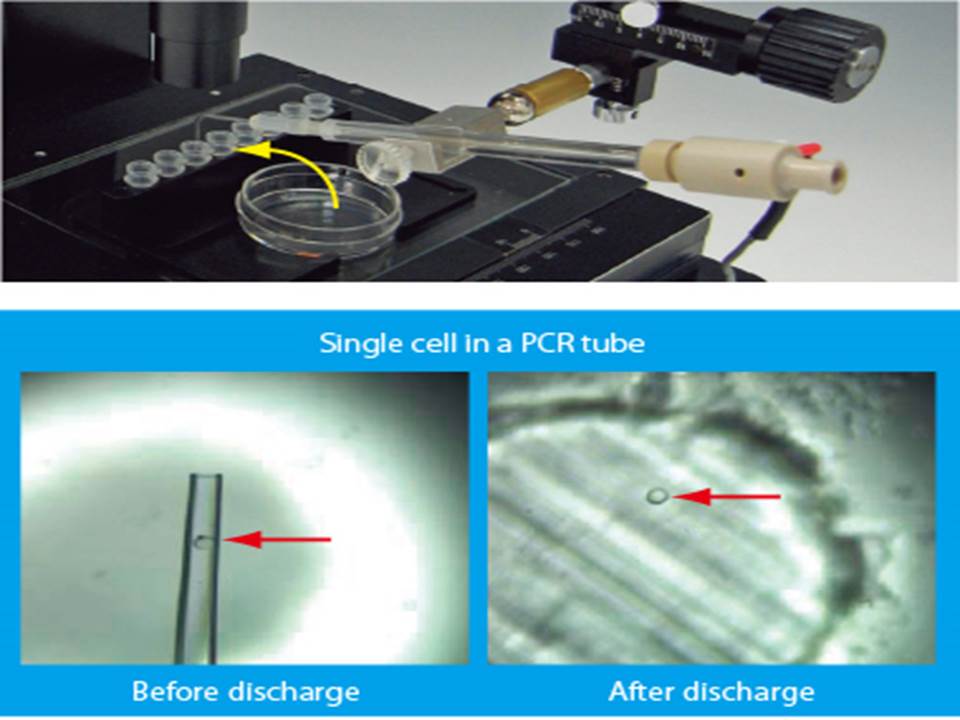

 MPP System Setup



VIDEOS OF DIFFERENT MICRO PICK AND PLACE SYSTEM CONFIGURATIONS

1) MPP-300 Micro Pick and Place Standard System
Glass micropipette: straight shape
  Blue beads (70-80 um) are picked up one by one and discharged at intended positions one by one observing the beads with the Compass video microscope.



<iframe width=”560″ height=”315″ src=”https://www.youtube.com/embed/Jqzm1mSOr68″ frameborder=”0″ allowfullscreen></iframe>



2) MPP-300Z Micro Pick and Place Compass Z System
1-PCR8T-1 PCR 8-tube strip holder
Glass micropipette: S shape
  Gel beads (about 10 um) are picked up one by one from a microscope slide and discharged into a PCR tube observing the beads with the Compass Z, Zrobo-mounted video microscope.



<iframe width=”560″ height=”315″ src=”https://www.youtube.com/embed/3LW4Ua3BuJo” frameborder=”0″ allowfullscreen></iframe>

3) MPP-200Z Micro Pick and Place Z Robo System
1-PCR8-4 PCR 8-cap strip holder
Glass micropipette: straight shape
  Blue beads (about 50 um) are picked up one by one from a microscope slide and discharged into a PCR cap observing the beads with an inverted microscope.

<iframe width=”560″ height=”315″ src=”https://www.youtube.com/embed/M4s2Ht9RGE0″ frameborder=”0″ allowfullscreen></iframe>



4) MPP-200Z Micro Pick and Place Z Robo System
Glass micropipette: S shape
  Gel beads (about 10 um) are picked up one by one from a well of a 96-well plate and discharged into another well observing the beads with an inverted microscope.



<iframe width=”560″ height=”315″ src=”https://www.youtube.com/embed/wTLUcD3vJvI” frameborder=”0″ allowfullscreen></iframe>

All features and specifications subject to change without notice.

For a demonstration of the MPP System or to contact us for further information

sales@sonidel.com

Further Information
– MPP System Configurations
– MPP Glass Micropipettes and Other Accessories
– MPP System Presentation
– MPP System Brochure
