ECFG21-LF201-LF101 Illustrated Applications

ECFG21, LF201 and LF101 Illustrated Applications

Please note the illustrated Applications notes below

Comparison of 3 cell fusion techniques using polyethylene glycol, electrofusion, and HVJ envelope vector for production of monoclonal antibody by iliac lymph node methods
Reprogramming of a melanoma genome by nuclear transplantation
Timing controllable electrofusion device for aqueous droplet-based microreactors
A microfluidic device for electrofusion of biological membranes
Generation of cloned calves and transgenic chimeric embryos from bovine embryonic stem-like cells
rrrr
sss
ssss
Comparison of 3 cell fusion techniques using polyethylene glycol, electrofusion, and HVJ envelope vector for production of monoclonal antibody by iliac lymph node methods
Electrofusion (Electro Cell Fusion)

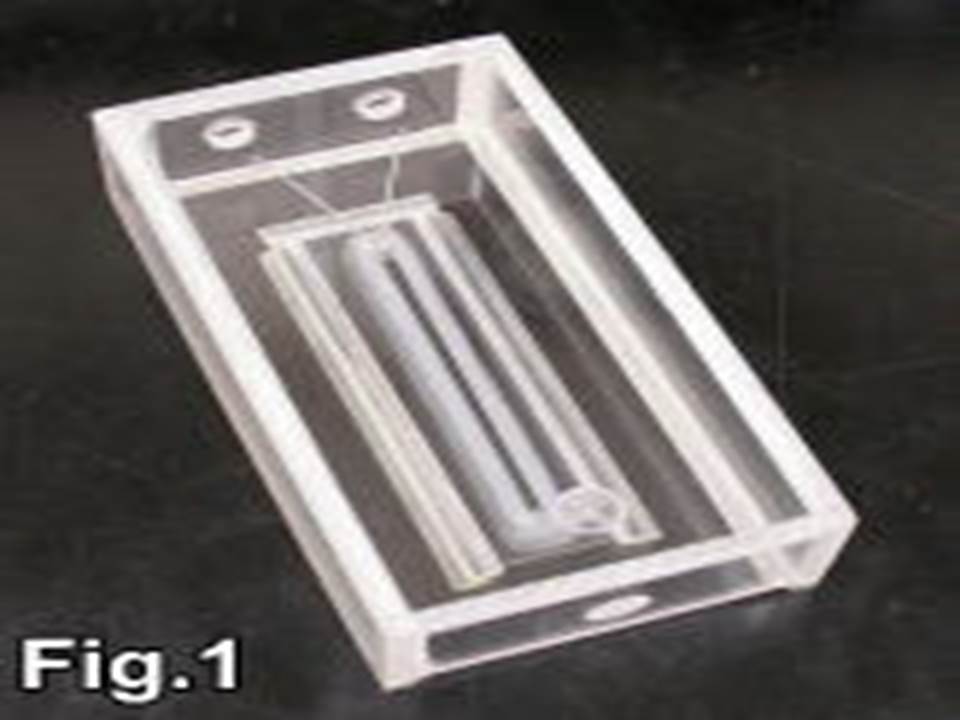

Electrofusion was performed using the ECFG21 and LF201 Electro Cell Fusion Generator (SONIDEL/Nepa Gene) and the CUY497P2 MS Stand Model Chamber Type Platinum Electrode, L80mm x W2mm x H5mm, 0.8ml (SONIDEL/Nepa Gene), (Fig. 1). The electrofusion buffer was composed of 0.3M mannitol, 0.1mM calcium chloride and 0.1mM magnesium chloride.

CUY497P2.
1) Using a ratio of one-to-one, B lymphocytes from animals immunized with ovalbumin and myeloma cells were put into a 15ml centrifuge tube containing electrofusion buffer and centrifuged. The supernatant was removed and the cells were suspended with 2.4ml of electrofusion buffer solution....
2) Set the Generator as follows: AC (1MHz, 30Vrms, 20sec), DC (350V, pulse length: 30sec, pulse interval: 0.5sec, 3 times). Connect the CUY497P2 electrode..
Inject 0.8ml of the suspended cells into the CUY497P2 electrode. Press the start button and the AC current for 20 seconds will bring the cells into alignment (pearl chain), then the Generator will automatically apply DC pulses three times. Then remove cells from Electrode. Repeat the step 2 two more times....
3) Centrifuge for 5 minutes at 1,000 rpm. Mix cells with HAT medium add BM-Condimed H1 and inoculate into four 96 well plates.
.
Table1
Comparison of fusion methods using
mouse iliac lymph node lymphocytes

PEG
Positive Wells
Electrofusion
Positive Wells
PEG:
Electrofusion Ratio
1st 166 250 1:1.5
2nd 60 182 1:3.0
3rd 65 262 1:4.0
 –

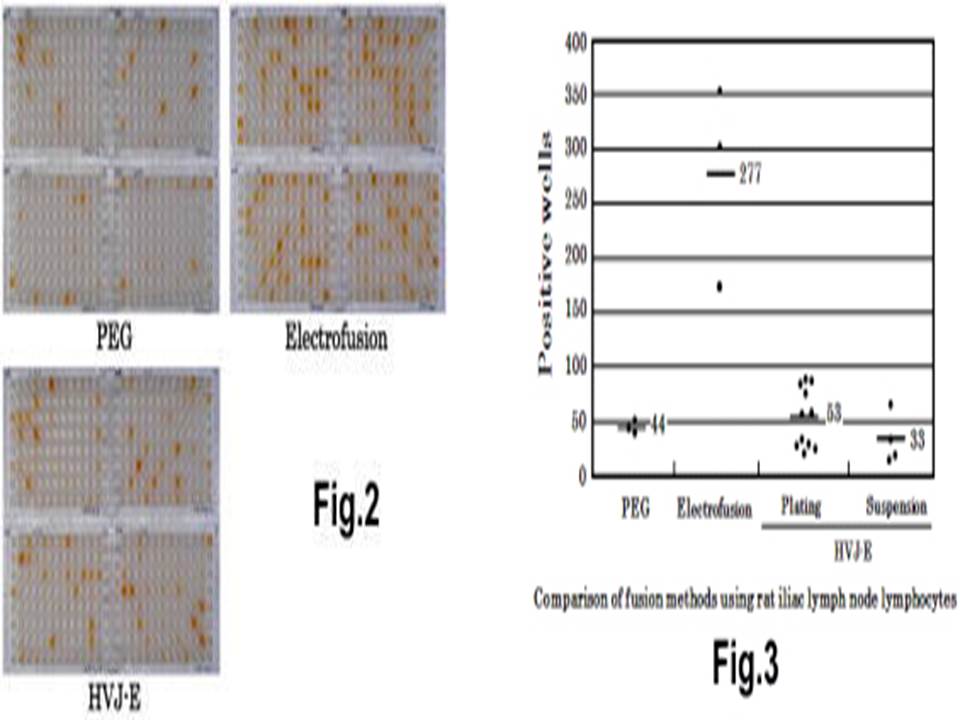

Comparison of methods using PEG and electrofusion
Experiments using PEG and electrofusion were done with iliac lymph node lymphocytes from mice. The cells in two cryogenic vials were thawed and mixed (approx. 4 x 107 cells). Then half of the cells were fused by PEG and the other half of the cells were fused by electrofusion. This set of experiments was done three times. The result was that the number of positive wells by electrofusion was 1.5-4.0 times as many as by PEG (Table 1). The average rate was 2.8 times.

ecfg21 / Comparison of methods using PEG and electrofusion


Discussion of electrofusion
Cell fusion with PEG, electrofusion and HVJ-E was done using iliac lymph node lymphocytes from rats (Fig. 2 and 3).
Cell fusion by electrofusion can be done with smaller number of lymphocytes than by PEG and HVJ-E, and its operation time is shorter than PEG and HVJ-E. The growth of fused cells after electrofusion was faster because its damage seemed to be low. Therefore ELISA screening for positive wells by electrofusion was done one day earlier than by PEG. The fusion technique does not vary from individual to individual because electrofusion operation is simple. Once the fusion operation and electric setting are optimized, the fusion with the equal condition can be always generated for the same animal’s lymphocytes. The fusion with an equal condition leads to small variation in the data. With electrofusion, the fusion time is short, the cell damage is low and the fusion efficiency is the highest. At this experiment, the number of positive wells was 6 times better compared to PEG...
 Summary
3 kinds of cell fusion methods were compared using iliac lymph node lymphocytes from mice and rats. PEG method is economical but the result varies according to fusion. The fusion efficiency by HVJ-E is the same or higher than PEG but it is better than PEG in that fused cells grow vigorously. The fusion efficiency by electrofusion is approx. 6 times better in the use of rat lymphocytes and approx. 3 times better in the use of mouse lymphocytes as high as by PEG. Electrofusion method is clearly the best out of the three in terms of efficiency, reproducibility, time and cost.

Satoko Inoue and Yoshikazu Sado,
Division of Immunology, Shigei Medical Research Institute

rrrr
sss
ssss
Reprogramming of a melanoma genome by nuclear transplantation.
Fig. 1. Two-step cloning procedure to produce mice from cancer cells.
Different tumor cells were used as donors for nuclear transfer into enucleated oocytes. Resultant blastocysts were explanted in culture to produce ES cell lines. The tumorigenic and differentiation potential of these ES cells was assayed in vitro by inducing teratomas in SCID mice (1), and in vivo by injecting cells into diploid (2) or tetraploid (3) blastocysts to generate chimeras and entirely ES-cell-derived mice, respectively.

.

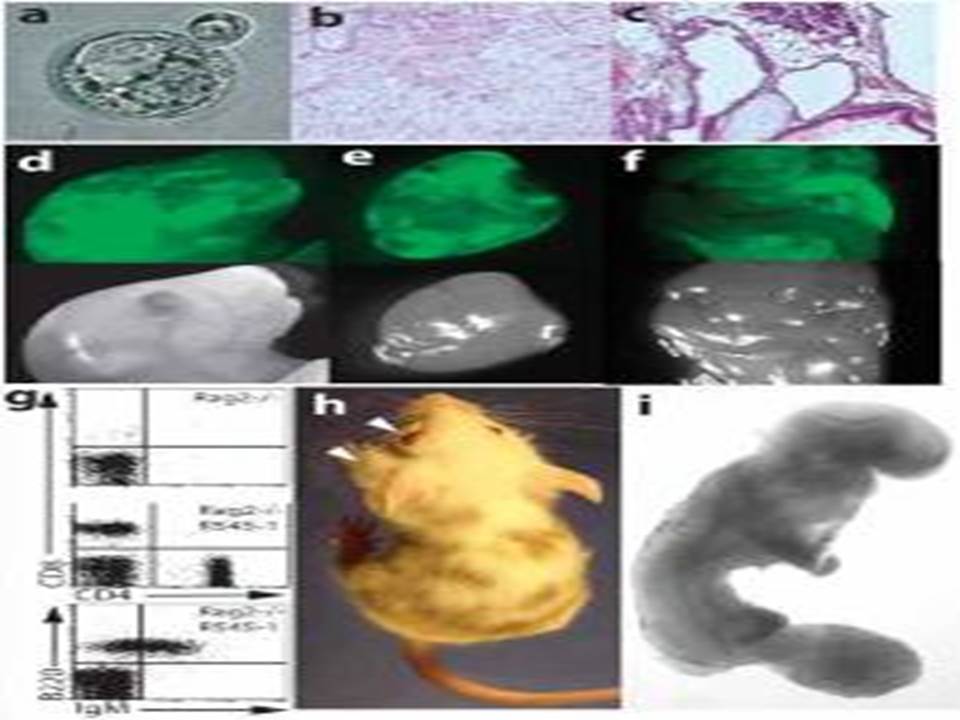

Developmental potential of R545-1 ES cells jpg Fig. 2. Analysis of the developmental potential of R545-1 ES cells.
(a) A hatching blastocyst derived from a breast cancer cell by nuclear transfer shows a blastocoel cavity, trophectoderm layer, and an inner cell mass.
(b,c) H&E staining of teratoma sections produced from R545-1 ES cells shows differentiation into mature neurons, mesenchymal cells, and squamous epithelium (b), and columnar epithelium, chondrocytes, and adipocytes(c).
(d–f) Contribution of GFP-labeled R545-1 ES cells to newborn chimeras. Shown on top are the GFP images of the head (d), heart (e), and intestine (f) of one chimera. Below are the same images under phase contrast.
(g) FACS analysis of peripheral blood of a Rag2/R545-1 ES cell chimera shows the presence of B cells using antibodies FITC-IgM/PE-B220 and T cells using antibodies FITC-CD4/PE-CD8.
(h) Contribution of R545-1 cells to the skin indicates differentiation into melanocytes. Arrows depict spontaneous development of tumors on the eye and neck of chimera.
(i) Embryos produced entirely from ES cells by tetraploid complementation develop to E9.5 with obvious tail and limb buds, a closed neural tube, and a beating heart.

.

Cancer phenotype in chimeric mice jpg

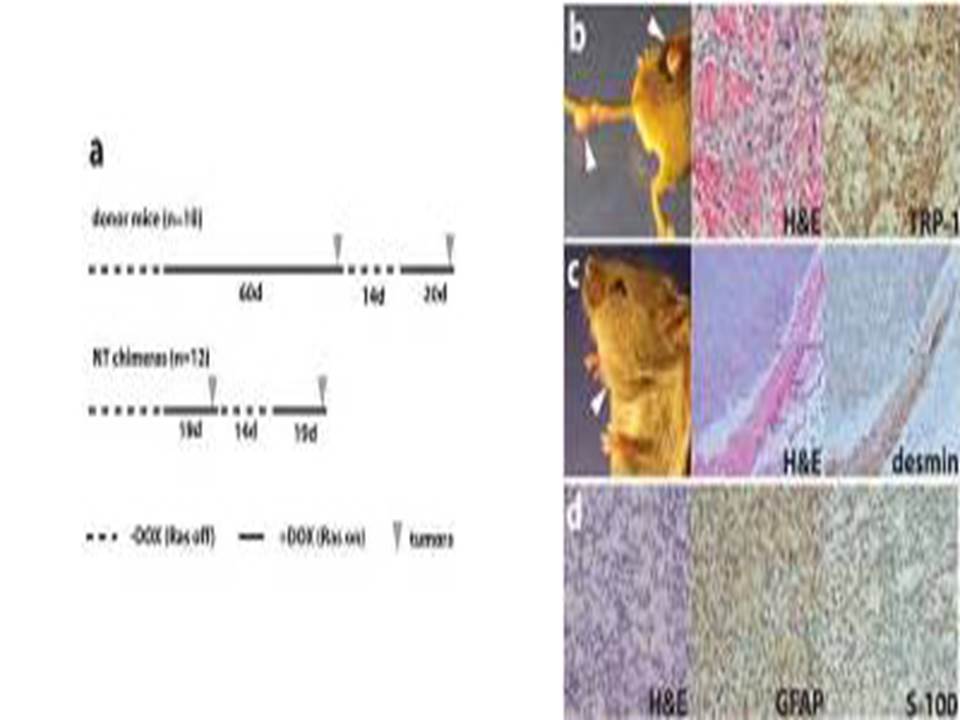

Fig. 3. Cancer phenotype in chimeric mice.
(a) Comparison of the average latency period of tumor development in the melanoma donor mice (top) with that in nuclear transfer (NT) chimeras (bottom). Note the similar latency of tumor development in NT chimeras with that in donor mice after readministration of doxycycline (recurrent tumors).
(b–d) Representative pictures and immunohistochemistry of tumors that formed in R545-1 NT chimeras. Arrows indicate sites of tumor growth. Melanomas (b), a rhabdomyosarcoma (c), and a malignant peripheral nerve sheath tumor (MPNST; d) were identified by H&E staining and immunohistochemistry with melanocyte-specific TRP-1 or muscle-specific desmin or MPNST-detecting GFAP and S-100 antibodies, respectively.
Hochedlinger K et al.,
Whitehead Institute for Biomedical Research, and Department of Biology, Massachusetts Institute of Technology
Genes Dev. 2004 Aug 1;18(15):1875-85.
rrrr
sss
ssss
Timing controllable electrofusion device for aqueous droplet-based microreactors [Publication 1]
ecfg21-Timing controllable electrofusion device for aqueous droplet-based microreactors
Fig. 1. Electrofusion of droplets in the fusion chamber.

(a) Droplets formed upstream enter the fusion chamber.
(b) Due to the widening of the chamber, the droplets slow down and make contact when it enters the fusion chamber.
(c) Upon the application of an electric field (50V, 750m gap, Pulse width: 10s, Interval: 0.2sec, 5 times) the contacting droplets coalesce.
(d) Photo showing two coalesced droplets. *The round particle near the top electrode was an air bubble.

.

Electric pulses were applied with an Electro Cell Fusion Unit (LF101, NEPA GENE).

Fig. 2. High speed camera images of the fusion process..
This fusion process is almost instantaneous. The two droplets combined into one single ”peanut-shaped” droplet within about 1ms. It took about another 5ms for the droplet to adopt a spherical shape under the effect of surface tension. Throughout the fusion process, the darker colored blue ink droplet (leftmost) was distinctly separated from the lighter colored water droplet (rightmost).

.VIDEO (URL)……………………………………………………………

click to play.

Wei-Heong Tan and Shoji Takeuchi, CIRMM/IIS, Institute of Industrial Science, University of Tokyo* Lab on a chip, Volume 6, Issue 6, Pages 757-763, June 2006
rrrr
sss
ssss
A microfluidic device for electrofusion of biological membranes [Publication 2]
.

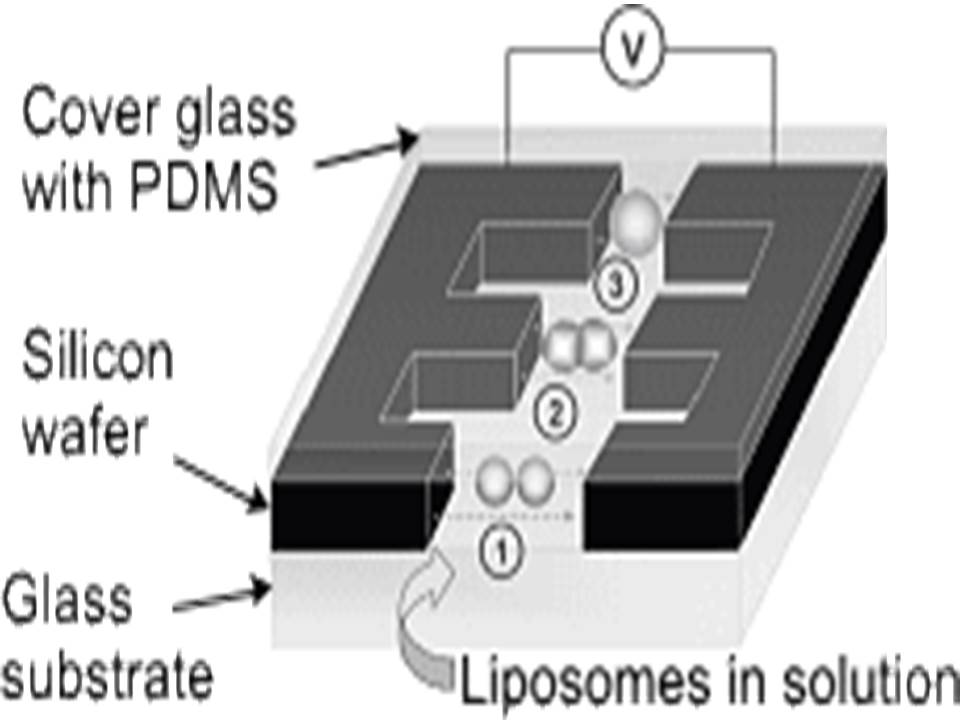

………….Fig. 1. Schematic view of the device and protocol to fuse liposomes
Various gaps of electrodes have been designed..
(1) Liposomes are aligned along the electric field lines by AC voltage..
(2) DC pulses inducing high electric field perform the breakdown of membranes..
(3) These membranes reconnect to form a hybrid vesicle..

The device must have input impedance larger than 1 kohm – according to the specifications of our power equipment (LF101, SONIDEL/NEPA GENE) – at frequencies in the range of 100kHz-1MHz as demanded by the electrofusion protocol.

.

Fig. 2. Experimental sequence of liposome fusion
(1) Alignment, (2) Membrane breakdown, (3) Reconnection
Illustrates a real sequence of liposome fusion from the alignment of vesicles to the membrane reconnection subsequent to their breakdown…
Fig. 3. Electrofusion of E. coli provacuoles with bulk electrodes
(a) Alignment, (b) After fusion
The conditions of electrofusion were similar to liposome’s ones except for more (20) and longer (90s) DC pulses. Even though the membrane reconnection took place, the reorganization into a proper spheroplast was still hindered by the membrane stiffness.
Guillaume Tresset 1 and Shoji Takeuchi 2   1 LIMMS/CNRS-IIS, 2 CIRMM/IIS, Institute of Industrial Science, University of Tokyo
* Biomedical Microdevices, Volume 6, Number 3, Pages 213-218, September 2004
rrrr
sss
ssss
Generation of cloned calves and transgenic chimeric embryos from bovine embryonic stem-like cells

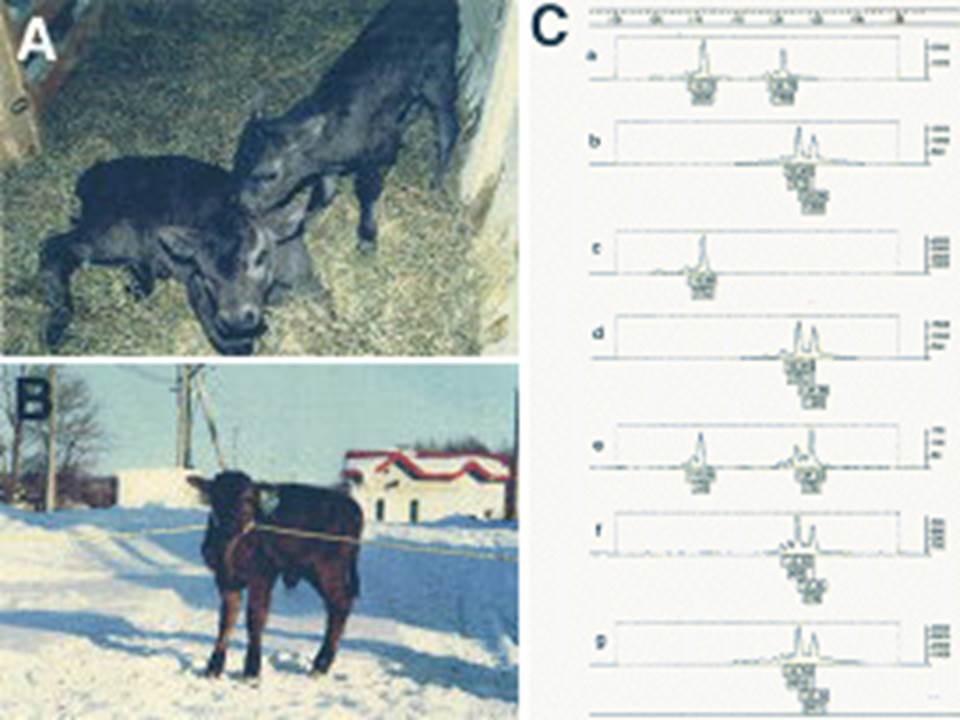

.Fig. 1. Photographs of calves obtained after nuclear transfer.
 Photographs of calves obtained after nuclear transfer jpg


A: Two days after birth,   B: Four weeks after birth
C: Fingerprinting of DNA from cloned calves, recipient cows, and donor ES-like W3 cells.



Electrophoretograms show amplified fragments of DNA derived from leukocytes from recipient cows (panels a, c and e) and cloned calves (panels b, d and f) and from donor ES-like W3 cells (panel g). Upper and right-side scales indicate the sizes of DNAs (bp) and the intensities of DNA fragments, respectively. Numbers in boxes indicate the sizes of DNAs (upper) and the intensities of DNA fragments (lower). After insertion of donor ES-like cells into the perivitelline space of oocytes, cells and cytoplasts were fused electrically in fusion medium. (DC: 20V, Pulse length: 50s, Pulse interval: 100ms, 2 Pulses).
.
Fig. 2. Expression of EGFP in transgenic chimeric embryos derived from ES-like cells.
Expression of EGFP in transgenic chimeric embryos derived from ES-like cells jpg
A: Phase-contrast image of EGFP transgenic ES-like cells. Magnification: 200x
B: Fluorescence microscopy image of (A)
C: Ten to fifteen ES-like cells being injected into embryos at 8- to 16-cell stage.
(Fluorescence phase-contrast image)
D, E: Micromanipulation procedures for the formation of chimeric embryos generated by EGFP transgenic ES-like cells and recipient embryos by in vitro fertilization. Magnification: 200x
F: Proliferation of transfected ES-like cells after one day in culture following the formation of chimeric embryos. Magnification: 200x
G and H jpg
G: EGFP transgenic blastcysts four days after injection of G418-selected ES-like W3 cells that had been transfected with pCX-Neo-EGFP.
H: Fluorescence microscopy image of (G)
Distinct expression of EGFP was apparent in both the ICM and trophectodermal cells.
Dr. Shigeo Saito, Saito Laboratory of Cell Technology
※Biochemical and Biophysical Research Communications, Volume 309, Issue 1, Pages 104-113, 12 September 2003
Back to ECFG21 Page
