Connector Cables for NEPA21 / CUY21 Electroporator and Electrodes

Cables and Footswitch (for NEPA21, CUY21EDIT & CUY21SC)

C112CB

C115CB………………………… C115B

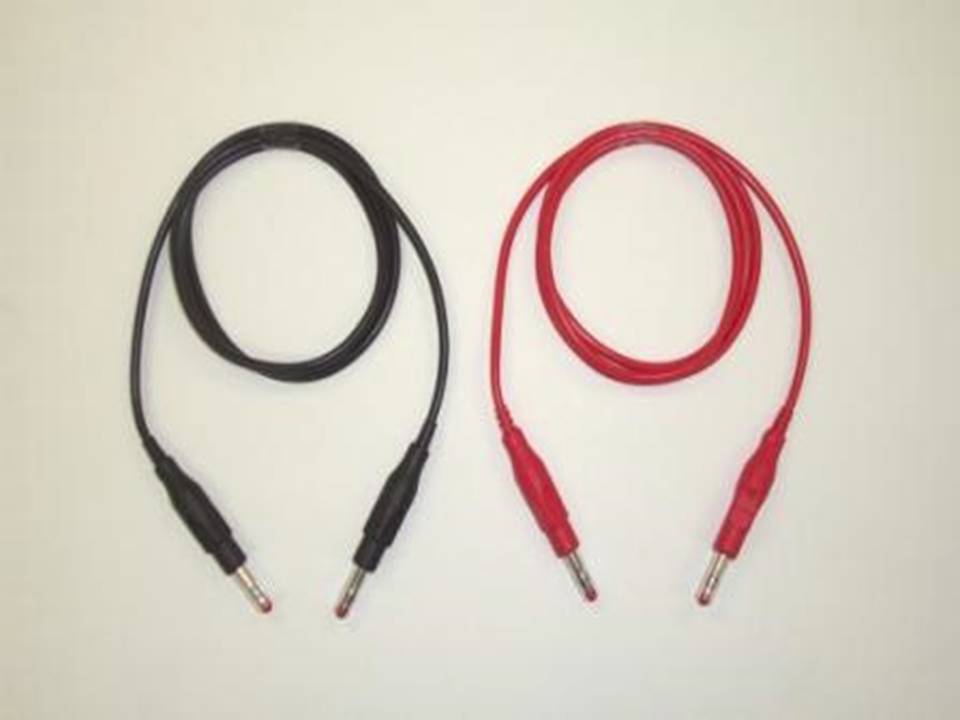

C112CB

High voltage covered plug & High voltage covered plug cable

C115CB

Female plug & Cover banana plug cable, red & black

C116

C117

C116

Female plug & BNC connector cable

C117

Hook & male plug cable

C118

C200

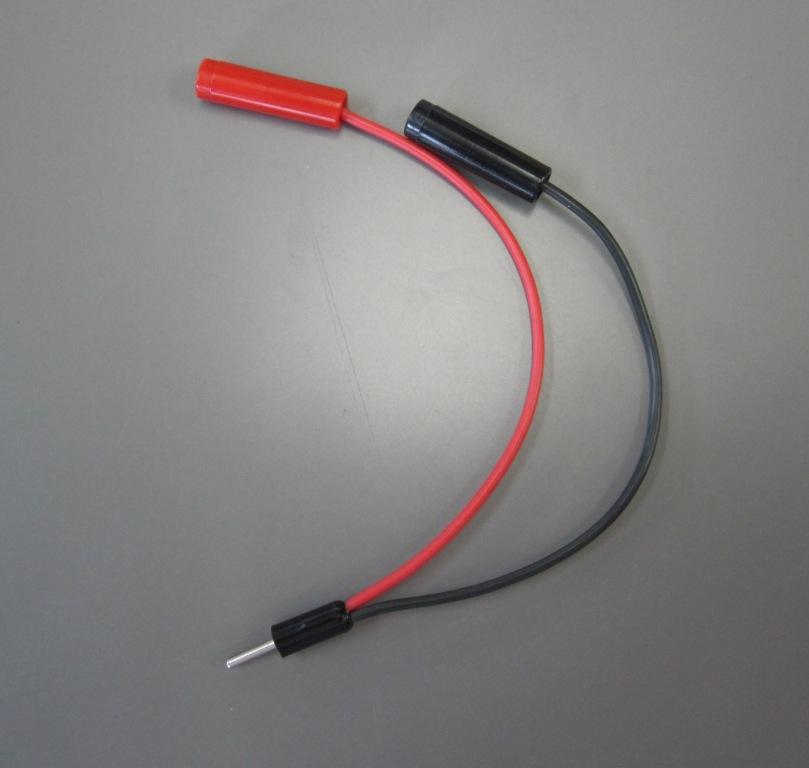

C118

Female & male plug cable ……….. (For monopole conversion)

C200

Foot Switch

Cat. No.

Appropriate Cable

*C112CB is necessary for using CU902 Polarity Exchanger

What cables do I need to connect our electrodes to the BTX ECM830?

– The C115B connector cable is required

Technical Drawing: C115B

.

Can our electrodes be connected to the BioRad GenePulsar electroporator?

– Our electrodes cannot be connected to the BioRad GenePulsar electroporator. We have no suitable connection cable.

What cables do I need to use the CUY611 series electrodes with the ECM830 electroporator?

– C115B and

– C117 are required

Technical Drawing: C115B Technical Drawing: C117

.

What cables do I need to use the CUY650 series electrode with the ECM830?

– C115B is required

If one uses the tweezers-type electrode with the ECM830 the C117 is not required. The C117 is used to hook a needle-type electrode such as the CUY611 series and the CUY613 series. Tweezers-type electrodes such as the CUY650 series have the required connector plugs.

Technical Drawing: CUY650 series

.

.

How do I connect the CUY615 to the CUY614?

– The CUY615 has the female connector end and the CUY614 has the male connector end.

– The male connector of CUY614 is inserted into the female connector of CUY615. When tungsten needle electrode of the CUY614 is worn out, it is simply pulled out from the CUY615 and replaced.

Photo: CUY614 and CUY615

Technical Drawing: CUY614 and CUY615

.

.

SAFETY WARNING:

Please note that our electrodes have been specifically designed for use with the NEPA21 and CUY21 electroporator series only. Accordingly, we are unable to extend our usual safety guarantee to anyone who chooses (of their own volition) to use our electrodes with electroporators other than the NEPA21 and CUY21 series. To choose to use our electrodes with electroporators other than the NEPA21 and CUY21 series is at the sole discretion of the user. We accept no liability for such use in such instances nor for injury to the researcher resulting from such usage.
