As no PC is required the PF-NP-200 is ideal for a laboratory that requires a portable device that can be easily moved from the cell culture room to a separate location anywhere in the facility. The additional power source via a car accessory socket facilitates transport to geographically separate locations

Advantages

• Cryopreserve with PRECISION
• OPTIMISE Freezing Rate for ANY CELL TYPE
• MAINTAIN High Cell Viability :
  Stem Cells
  iPSCs, ESCs, MSCs
  Primary Cells
  Umbilical Cord Blood
  Spermatozoa
  Embryos
  Tissue Sections

FEATURES

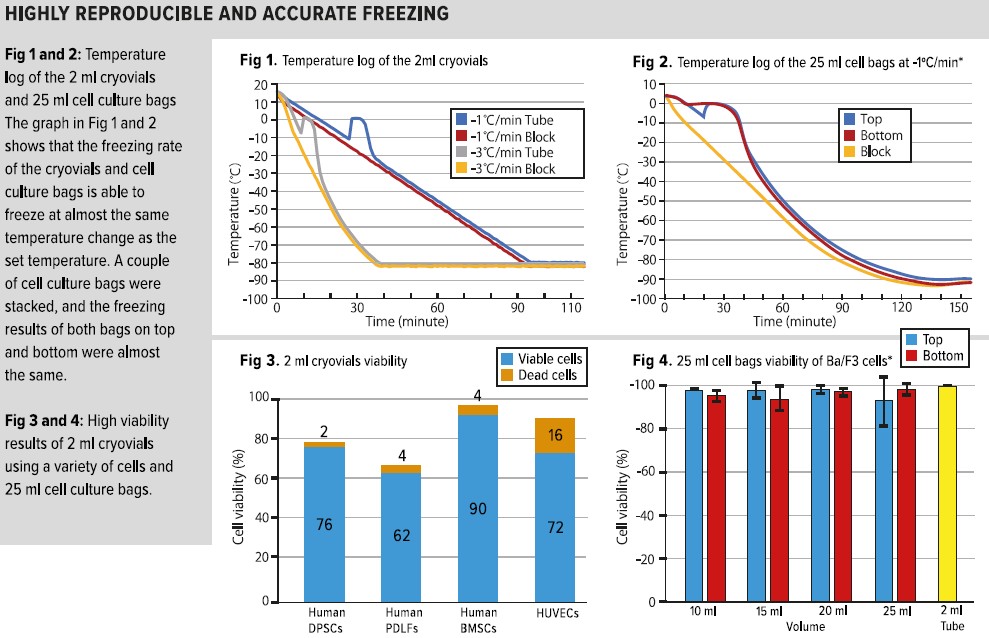

• Highly Reproducible & Accurate Freezing
• Maximise Cell Recovery with Minimum Effort
• Controlled Freezing and Storage of Cultured Cells
  –   Via Stirling Cooling Technology

• Reduced RUNNING COST
  –   NO Liquid Nitrogen, NO Alcohol, NO Cryogen
  –   REDUCED contamination risk
  –   NO Consumables
• Custom & Precise Control of FREEZING RATE
  –   Easily create custom-temperature profiles to improve performance by selecting the OPTIMAL freezing rate for ANY cell  type
  –   Select freezing rates from -0.1⁰C/minute to -3⁰C/minute
• FREEZING BLOCK HEATER
  –   for QUICK temperature reset of block for next freeze cycle
• POWER FAILURE RESTART
  –   for QUICK RECOVERY after unpredicted Power OUTAGES
• Record Keeping Compliance
  –   Export Temperature Data Logging & Graphing
  –   Data as CSV data, via USB Memory
  –   Synchronise up to 8 units
• ADDITIONAL POWER SOURCE OPTION to facilitate PORTABILITY
  –   via accessory socket in a car
• Clean Room Compatible
• Standard and Custom Freezing Plates available

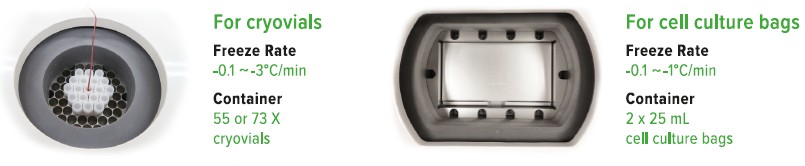

Freezing Plate

Standard Flexible Freezing Block Options

The device is configurable for Cryovials (55 or 73 x 2.0ml), Blood/Cell Culture bags (2 x 25ml) and Straws (20 x 0.25ml or 14 x 0.5ml) depending on selected freezing block type.
